Last updated at Tue, 14 Jun 2022 17:10:06 GMT

A remote and unauthenticated attacker can trigger a denial-of-service condition on Microsoft Windows Domain Controllers by leveraging a flaw that leads to a null pointer deference within the Windows kernel. We believe this vulnerability would be scored as CVSSv3 AV:N/AC:L/PR:N/UI:N/S:U/C:N/I:N/A:H or 7.5. This vulnerability was silently patched by Microsoft in April of 2022 in the same batch of changes that addressed the unrelated CVE-2022-24500 vulnerability.


This issue was fixed by Microsoft without disclosure in April 2022, but because it was originally classed as a mere stability bug fix, it did not go through the usual security issue process. In May, Spencer McIntyre of Rapid7 discovered this issue while researching the fix for CVE-2022-24500 and determined the security implications of CVE-2022-32230. It is being disclosed in accordance with Rapid7’s vulnerability disclosure policy.

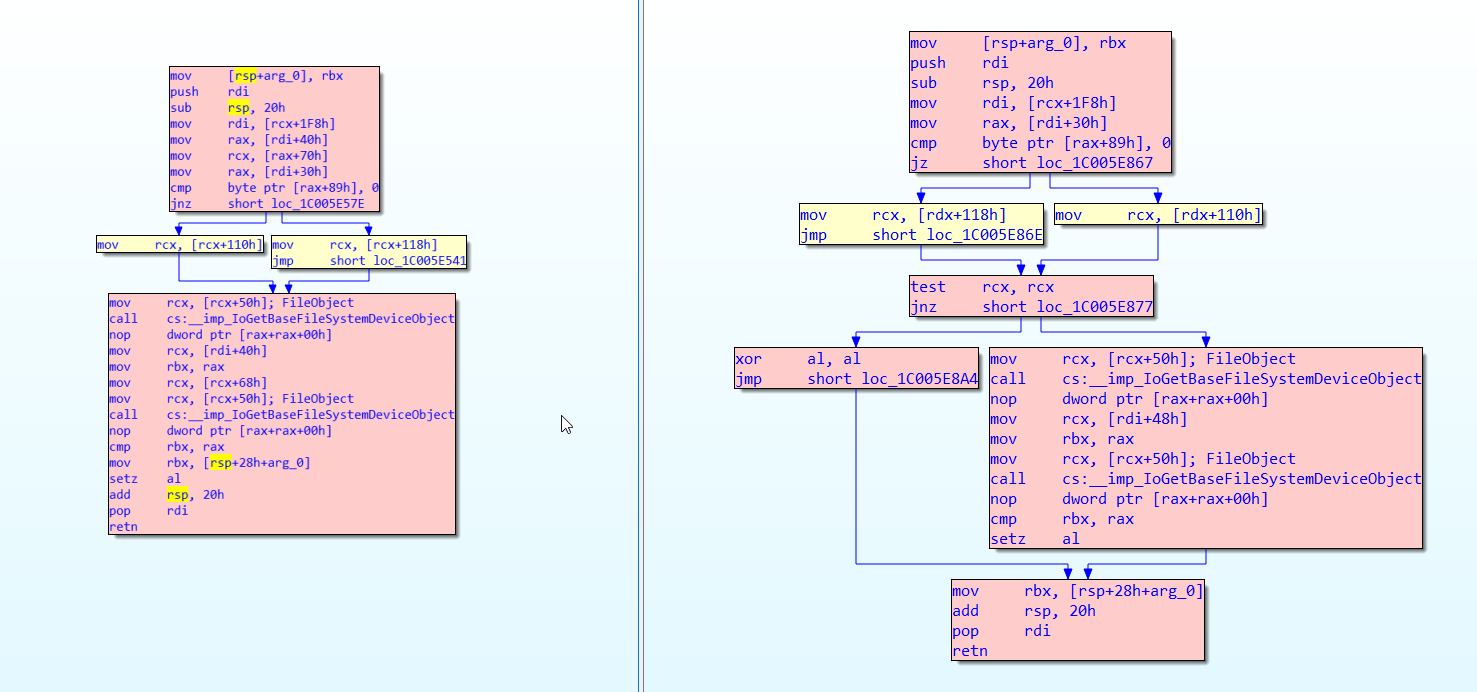

CVE-2022-32230 is caused by a missing check in srv2!Smb2ValidateVolumeObjectsMatch to verify that a pointer is not null before reading a PDEVICE_OBJECT from it and passing it to IoGetBaseFileSystemDeviceObject. The following patch diff shows the function in question for Windows 10 21H2 (unpatched version 10.0.19041.1566 on the left).

This function is called from the dispatch routine for an SMB2 QUERY_INFO request of the FILE_INFO / FILE_NORMALIZED_NAME_INFORMATION class. Per the docs in MS-SMB2 section Handling SMB2_0_INFO_FILE, FILE_NORMALIZED_NAME_INFORMATION is only available when the dialect is 3.1.1.

For FileNormalizedNameInformation information class requests, if not supported by the server implementation<392>, or if Connection.Dialect is "2.0.2", "2.1" or "3.0.2", the server MUST fail the request with STATUS_NOT_SUPPORTED.

To trigger this code path, a user would open any named pipe from the IPC$ share and make a QUERY_INFO request for the FILE_NORMALIZED_NAME_INFORMATION class. This typically requires user permissions or a non-default configuration enabling guest access. This is not the case, however, for the noteworthy exception of domain controllers where there are multiple named pipes that can be opened anonymously, such as netlogon. An alternative named pipe that can be used but does typically require permissions is the srvsvc pipe.

Under normal circumstances, the FILE_NORMALIZED_NAME_INFORMATION class would be used to query the normalized name information of a file that exists on disk. This differs from the exploitation scenario which queries a named pipe.

A system that has applied the patch for this vulnerability will respond to the request with the error STATUS_NOT_SUPPORTED.

Proof of concept

A proof-of-concept Metasploit module is available on GitHub. It requires Metasploit version 6.2 or later.


The most likely impact of an exploit leveraging this vulnerability is a denial-of-service condition. Given the current state of the art of exploitation, it is assumed that a null pointer dereference in the Windows kernel is not remotely exploitable for the purpose of arbitrary code execution without combining it with another, unrelated vulnerability.

In the default configuration, Windows will automatically restart after a BSOD.


It is recommended that system administrators apply the official patches provided by Microsoft in their April 2022 update. If that is not possible, restricting access and disabling SMB version 3 can help remediate this flaw.

Disclosure timeline

April 12th, 2022 – Microsoft patches CVE-2022-32230
April 29th, 2022 – Rapid7 finds and confirms the vulnerability while investigating CVE-2022-24500
May 4th, 2022 – Rapid7 contacts MSRC to clarify confusion regarding CVE-2022-32230
May 18th, 2022 – Microsoft responds to Rapid7, confirming that the vulnerability now identified as CVE-2022-32230 is different from the disclosed vulnerability CVE-2022-24500 with which it was patched
June 1, 2022 — Rapid7 reserves CVE-2022-32230 after discussing with Microsoft
June 14th, 2022 – Rapid7 releases details in this disclosure, and Microsoft publishes its advisory
