Welcome to the NICER Protocol Deep Dive blog series! When we started researching what all was out on the internet way back in January, we had no idea we'd end up with a hefty, 137-page tome of a research report. The sheer length of such a thing might put off folks who might otherwise learn a thing or two about the nature of internet exposure, so we figured, why not break up all the protocol studies into their own reports?

So, here we are! What follows is taken directly from our National / Industry / Cloud Exposure Report (NICER), so if you don't want to wait around for the next installment, you can cheat and read ahead!

[Research] Read the full NICER report today

Get Started

HTTP (TCP/80) & HTTPS (TCP/443)

One protocol to bring them all, and in the darkness, bind them.


  • WHAT IT IS: HTTP: Pristine, plaintext Hypertext Transfer Protocol communications. HTTPS: Encrypted HTTP.
  • HOW MANY: 51,519,309 discovered HTTP nodes. 36,141,137 discovered HTTPS nodes. We’re going to be talking a bit differently about fingerprinting in this blog post, so raw, generic counts will have no context.
  • VULNERABILITIES: Hoo boy! Many! But, do you mean vulnerabilities in core web servers themselves? The add-ons folks build into them? The web applications they serve? As many users of Facebook might say, “it’s complicated.”
  • ADVICE: Go back to Gopher! Seriously, though, please continue to build awesome things using HTTPS. Just build them in such a way that folks who install and operate web servers can easily configure them securely, see patch status, and upgrade quickly and confidently.
  • ALTERNATIVES: QUIC, or “Quick UDP Internet Connection,” which is a “new multiplexed and secure transport atop UDP, designed from the ground up and optimized for HTTP/2 semantics.” While HTTP[S] will be with us for a Very Long Time, QUIC is its successor and will usher in whole new ways to deliver content securely and efficiently (and undoubtedly, exploit the same).

We’re going to talk about both HTTP and HTTPS combined (for the most part) as we identify what we found, some core areas of exposure, and opportunities for attackers. It’ll be a bit different than all the previous blogs, but that’s just part of the quirky nature of HTTP in general.

Discovery details

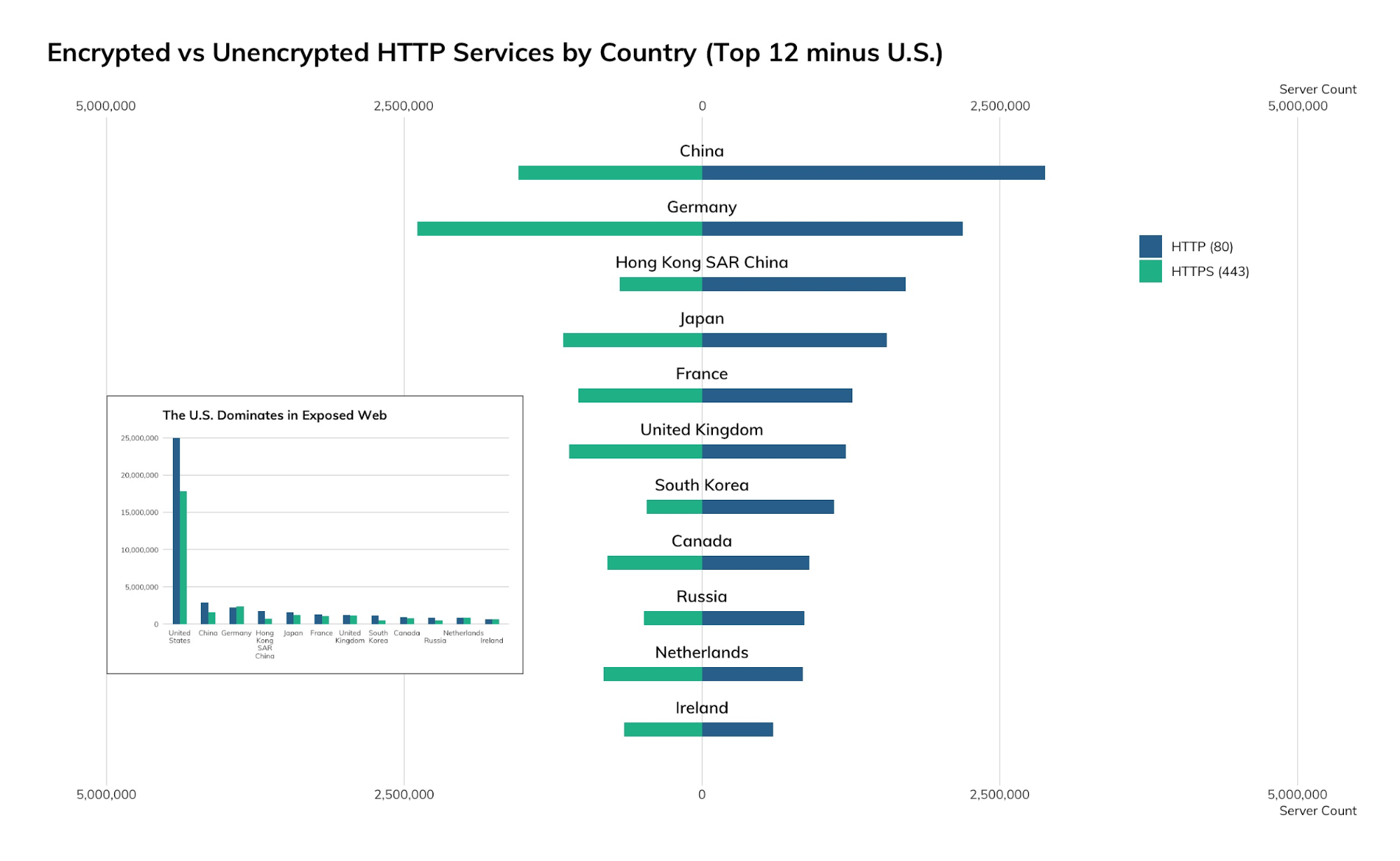

Way back in our Email blogs, we compared encrypted and unencrypted services. We’ll do the same here, but will be presenting a “top 12” for countries since that is the set combination between HTTP and HTTPS.

There are 30% more devices on the internet running plaintext HTTP versus encrypted HTTPS web services. The U.S. dwarfs all other countries in terms of discovered web service, very likely due to the presence of so many cloud services, hosting providers, and routers, switches, etc. in  IPv4 space allocated to the U.S.

Germany and Ireland each expose 9% more HTTPS nodes than HTTP, and both the Netherlands and U.K. are quickly closing their encryption disparity as well.

We’ll skip cloud counts since, well, everyone knows cloud servers are full of web servers and we’re not sure what good it will do letting you know that Amazon had ~640K Elastic Load Balancers (version 2.0!) running on the day our studies kicked off.

Exposure information

To understand exposure, we need to see what is running on these web servers. That’s not as easy as you might think with just lightweight scans. For example, here are the top 20 HTTP servers by vendor/family and port:

Vendor Family HTTPS (80) % of HTTP HTTPS (443) % of HTTPS
Microsoft IIS 5,273,393 10.24% 2,096,655 5.80%
Apache Apache 4,873,517 9.46% 2,595,714 7.18%
nginx nginx 3,938,031 7.64% 2,495,667 6.91%
Amazon Elastic Load Balancing 644,862 1.25% 386,751 1.07%
Squid Cache Squid 381,224 0.74% 8,649 0.02%
ACME Laboratories mini_httpd 125,708 0.24% 82,427 0.23%
Oracle GoAhead Webserver 48,505 0.09% 40,501 0.11%
Apache Tomcat 40,702 0.08% 32,271 0.09%
Taobao Tengine 37,626 0.07% 14,130 0.04%
Eclipse Jetty 29,750 0.06% 50,763 0.14%
Mbedthis Software Appweb 23,463 0.05% 19,470 0.05%
Virata EmWeb 22,354 0.04% 7,179 0.02%
Embedthis Appweb 17,235 0.03% 32,629 0.09%
Microsoft Windows CE Web Server 14,012 0.03% 1,027 0.00%
TornadoWeb Tornado 13,637 0.03% 10,151 0.03%
Tridium Niagara 9,772 0.02% 564 0.00%
TwistedMatrix Twisted Web 7,481 0.01% 4,984 0.01%
Caucho Resin 5,168 0.01% 1,812 0.01%
Mort Bay Jetty 5,079 0.01% 2,033 0.01%
SolarWinds Serv-U 3,232 0.01% 6,421 0.02%

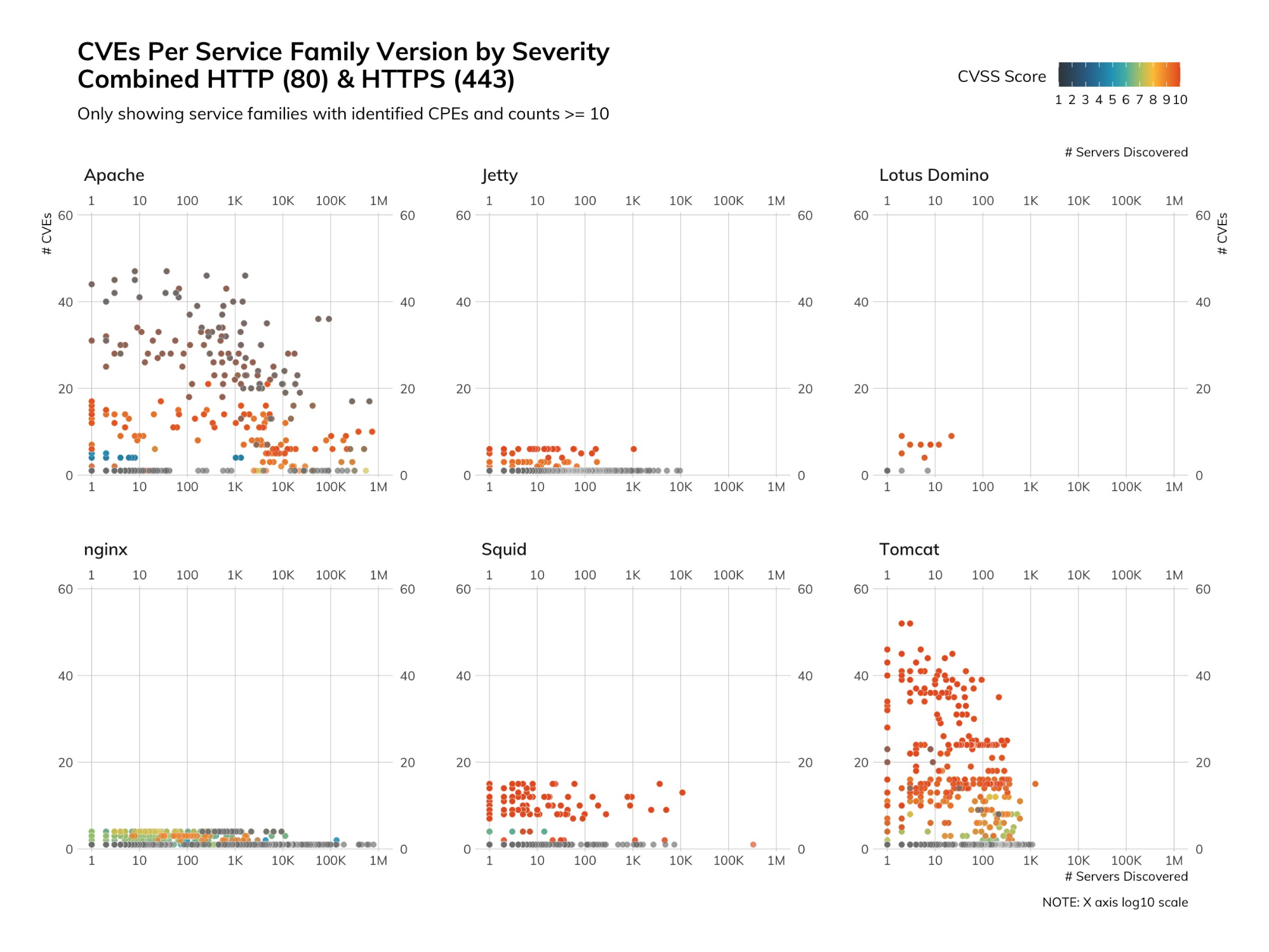

Remember, we’re just counting what comes back on a `GET` request to those two ports on each active IP address, and the counts come from Recog signatures (which are great, but far from comprehensive). For some servers, we can get down to the discrete version level, which lets us build a Common Platform Enumeration identifier. That identifier lets us see how many CVEs a given instance type has associated with it. We used this capability to compare each version of each service family against the number of CVEs it has. While we do not have complete coverage across the above list, we do have some of the heavy(ier) hitters:

We limited the view to a service family having at least having 10 or more systems exposed and used color to encode the CVSS v2 scores.

The most prevalent CVE-enumerated vulnerabilities are listed in the table below. While it's technically possible that these CVEs have been mitigated through some other software control, patching them out entirely is really the best and easiest way to avoid uncomfortable conversations with your vulnerability manager.

And, the top 30 most prevalent are:

CVE Number
CVE-2017-8361 336
CVE-2013-2275 202
CVE-2012-1452 186
CVE-2016-1000107 184
CVE-2016-6440 184
CVE-2012-0038 168
CVE-2012-1835 165
CVE-2016-8827 165
CVE-2011-3868 164
CVE-2011-0607 160
CVE-2007-6740 154
CVE-2013-4564 150
CVE-2016-0948 149
CVE-2016-0956 149
CVE-2009-2047 146
CVE-2015-5670 145
CVE-2017-8577 143
CVE-2014-0134 135
CVE-2015-5355 135
CVE-2012-5932 127
CVE-2014-8089 120
CVE-2015-5685 118
CVE-2016-1000109 118
CVE-2015-5672 114
CVE-2016-5596 112
CVE-2016-5600 112
CVE-2016-4261 111
CVE-2016-4263 111
CVE-2016-4264 111
CVE-2016-4268 111

While we expect to see traditional web servers, there are other devices connected to the internet that expose web services or administrative interfaces (which we’ve partially enumerated below):

Vendor Device HTTP (80) HTTPS (443)
Cisco Firewall 123 986,766
AVM WAP 1,942 604,890
Asus WAP 1 177,936
Synology NAS 61,796 50,531
Check Point Firewall 16,059 30,773
SonicWALL VPN 7,413 16,061
Ubiquiti WAP 0 11,813
HP Printer 16,247 9,178
MikroTik Router 289,026 8,056
Tivo DVR 6,400 6,779
Philips Light Bulb 4,785 3,349
Polycom VoIP 369 3,079
Ubiquiti Web cam 955 922
HP Lights Out Management 601 708
ARRIS Cable Modem 350 217
Fortinet Firewall 1,221 159
Xerox Printer 1,575 29
Canon Multifunction Device 124 14
Netwave Web cam 6,420 7
HeiTel DVR 2,734 2
Samsung DVR 53,053 2
Merit LILIN DVR 2,565 1
Fidelix Industrial Control 545 0
FUHO DVR 1,249 0
Shenzhen Reecam Tech. Ltd. Web cam 1,902 0
Ubiquiti DVR 675 0
Yamaha Router 9,675 0

For instance, we found nearly a million Cisco ASA firewalls. That fact is not necessarily “bad,” since they can be configured to provide remote access services (like VPN). Having 123 instances on port 80 is, however, not the best idea.

Unlike Cisco, most MikroTik routers seem to be exposed sans encryption, and over 75% of them are exposing the device’s admin interface. What could possibly go wrong?

Upward of 50,000 Synology network-attached storage devices show up as well, and the File Sharing blog posts talked at length about the sorry state of exposure in these types of devices. They’re on the internet to enable owners to play local media remotely and access other files remotely.

There are printers, and light bulbs; DVRs and home router admin interfaces; oh, and a few thousand entire building control systems.In short, you can find pretty much anything with a web interface hanging out on the internet.

Attacker’s view

There are so many layers in modern HTTP[S] services that attackers likely are often paralyzed by not knowing which ones to go after first. Attacking HTTP services on embedded systems is generally one of the safest paths to take, since they’re generally not monitored by the owner nor the network operator and can be used with almost guaranteed anonymity.

Formal web services—think Apache Struts, WebLogic, and the like—are also desirable targets, since they’re usually associated with enterprise deployments and, thus, have more potential for financial gain or access to confidential records. HTTP interfaces to firewalls and remote access systems (as we saw back in the Remote Access blog posts) have been a major focus for many attacker groups for the past 18–24 months since once compromised, they can drop an adversary right into the heart of the internal network where they can (usually) quickly establish a foothold and secondary access method.

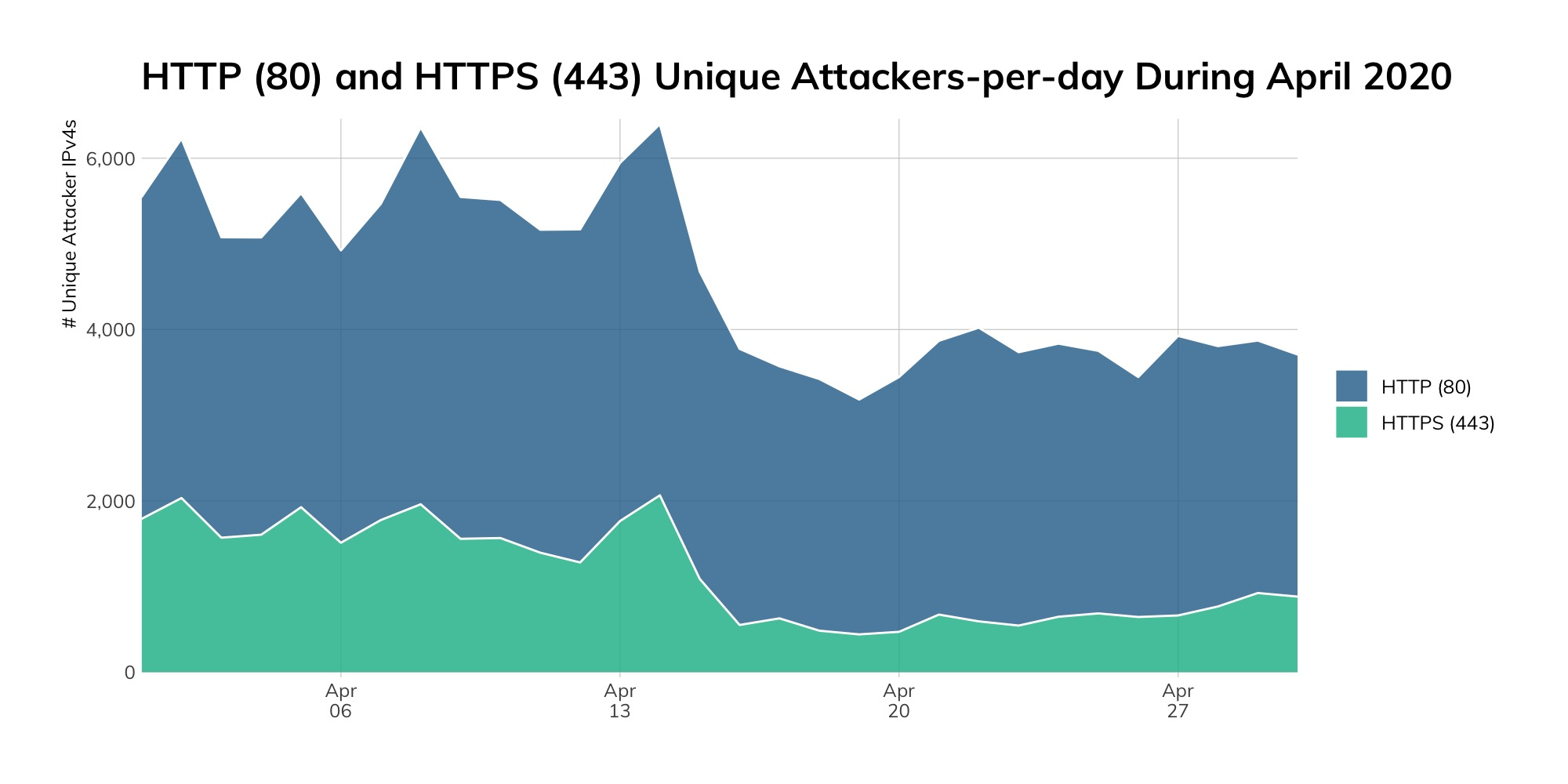

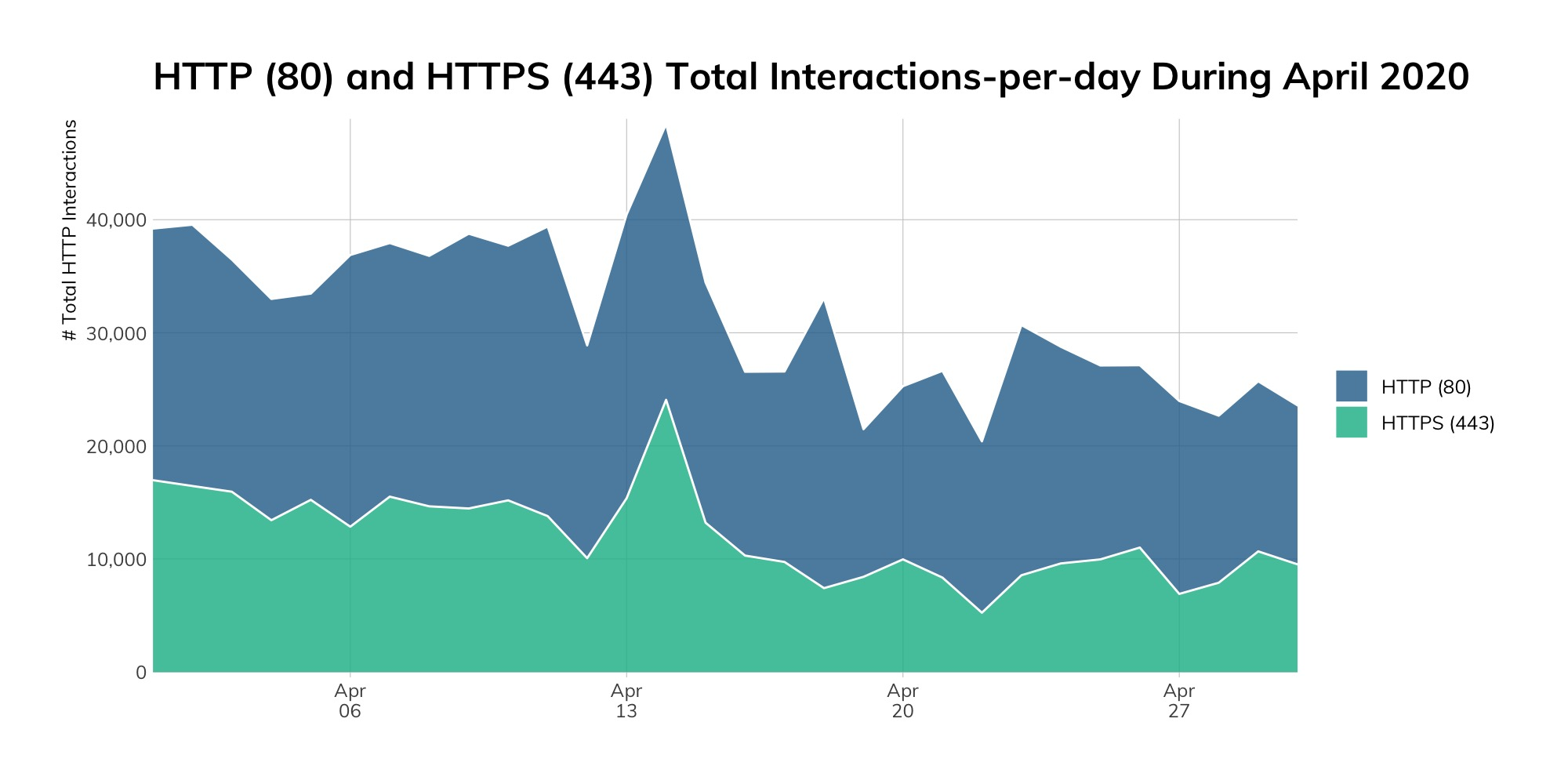

You’re also more likely to see (at least for now) more initial probes on HTTP (80), as noted by both the unique source IPv4 and total interaction views (above). It’s hard to say “watch 80 closely, and especially 80→443 moves by clients,” since most services are still offered on both ports and good sites are configured to automatically redirect clients to HTTPS. Still, if you see clients focus more on 80, you may want to flag those for potential further investigation. And, definitely be more careful with your systems that only talk HTTP (80).

Our advice

IT and IT security teams should build awesome platforms and services and put them on the internet over HTTPS! Innovation drives change and progress—plus, the internet has likely done more good than harm since the first HTTP request was made. Do keep all this patched and ensure secure configuration and coding practices are part of the development and deployment lifecycles. Do not put administrative interfaces to anything on the internet if at all possible and ensure you know what services your network devices and “Internet of Things” devices are exposing. Finally, disable `Server:` banners on everything and examine other HTTP headers for what else they might leak and sanitize what you can. Attackers on the lookout for, say, nginx will often move on if they see Apache in the Server header. You’d be surprised just how effective this one change can be.

Cloud providers should continue to offer secure, scalable web technologies. At the same time, if pre-built disk images with common application stacks are offered, keep them patched and ensure you have the ability to inform users when things go out-of-date.

Government cybersecurity agencies should keep reminding us not to put digital detritus with embedded web servers on the internet and monitor for campaigns that are targeting these invisible services. When there are major issues with core technologies such as Microsoft IIS, Apache HTTP, or nginx, processes should be in place to notify the public and work with ISPs, hosting, and cloud providers to try to contain any possible widespread damage. There should be active programs in place to ensure no critical telecommunications infrastructure has dangerous ports or services exposed, especially router administrative interfaces over HTTP/HTTPS.
